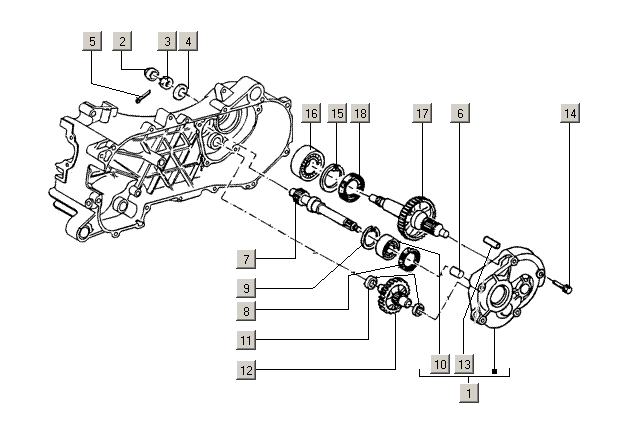

Drive shaft Piaggio NRG 50 2T Power DD H2O E2 2004-2005 (EMEA)
- 1. Transmission cover Piaggio 50 '98->
- 2. Kap blocking nut
- 3. Moer M16 x 1.25 SW24-13
- 4. Ring 34x16x2.2 ar. Axis
- 5. Split pen M 3.5 x 30
- 6. Cartel ring 5mm wide ING.AS
- 7. As driven Poelie
- 8. Turning 28x17x5 starting axle
- 9. Circlip for securities (R3.9)
- 10. Lower 6203/C3H
- 11. Filling ring 26 x16x1
- 12. Reduction country wheel 13/46 C13<>C36
- 13. Reference plug Ø9.3xø6.5x14.5mm
- 14. Flowing hexagon screw
- 15. Oilaftapplug Piaggio 125-500
- 16. Lower 6204/C4 RSR AS C80-NSL turned out
- 17. Outgoing AR.AS Z = 48 C13-C14-C22 D = 24mm
- 18. Turning 47x30-6 AS C01<>C25-C28
