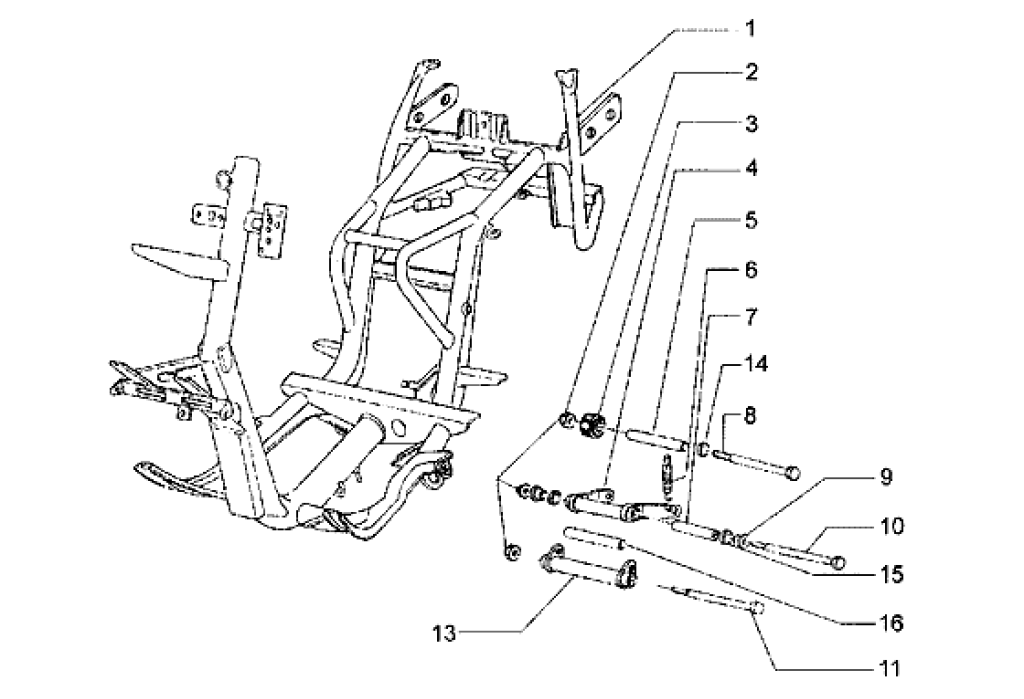

Chassis - Oscilling Arm Piaggio Esagono 125 LX 2T E1 1998-2000 (EMEA)
- 1.Frame
- 2.NUT M10
- 3. Sub-Framubber Exs-M02-M08 62x16x40
- 4.Swingarm M08-M12
- 5. Sub-Framebus d = 16/15.8-118mm
- 6. Sub-Frameveer CSM-EXS-M02
- 7. Sub-Framebus M05-M06 D = 15,75-182mm
- 8.Bout M10X215 SUB-FRAME
- 9. Subramelagerbus d = 20x15.9-26
- 10.Bout M10X205 SUB-FRAME SW-17
- 11. Nut
- 13. Non più disponibile
- 14.Circlip Kickstartas Ø16
- 15.Swingarm O-Ring EXS-M02-M08-M21
- 16. Sub-Framebus M08-M24 D = 15-215mm
